Product Feature | BYC- Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||

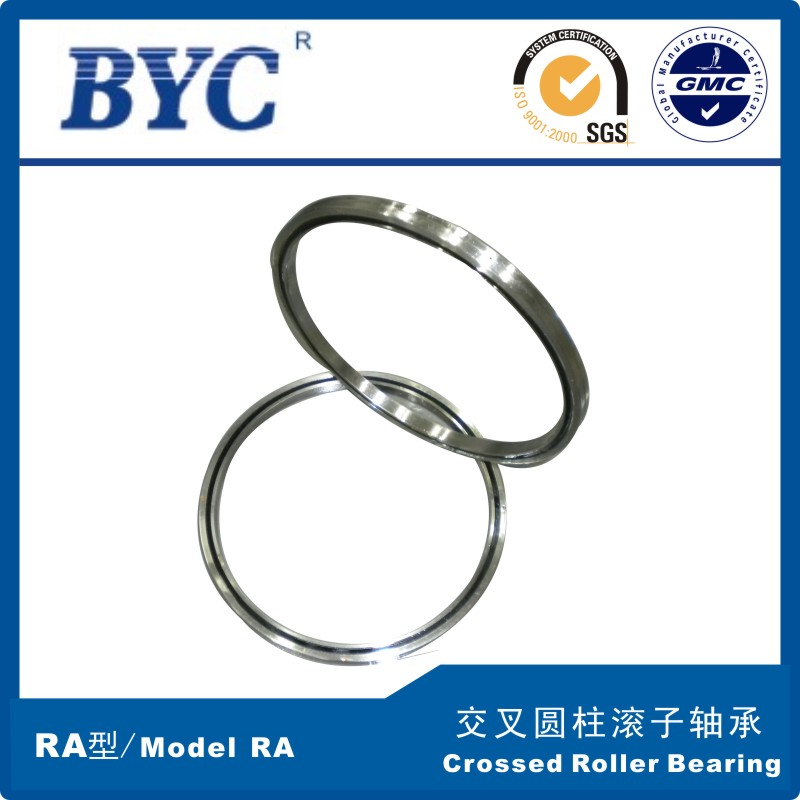

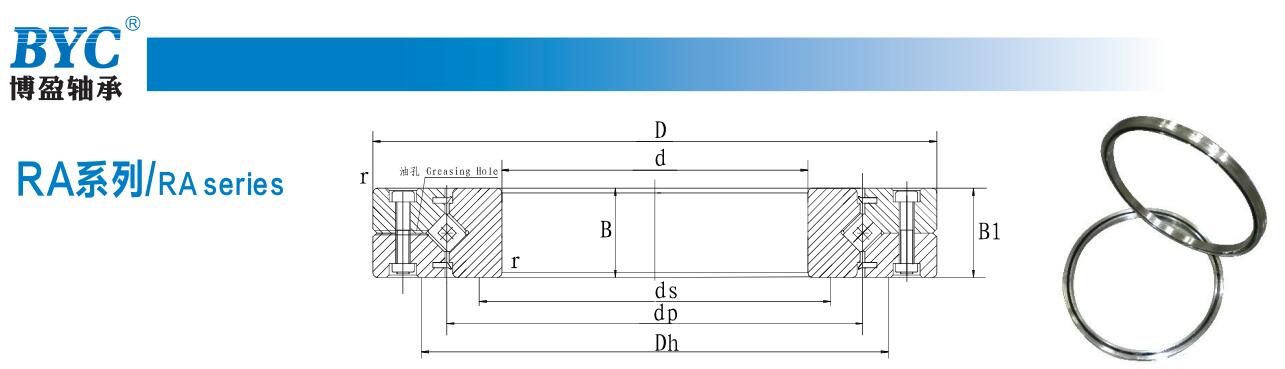

Series Introduction | Model RA (Separable Outer Ring,For Inner Ring Rotation) RA thin type is a small and light weight bearing with a very thin wall thickness. It carries heavy loads. Therefore, the bearing housing and pressure flange can be light weight. It is being used in rotary locationss such as in robot hands. The outer rings of the RA thin type are separable and fixed by special rivets. | ||||||||||

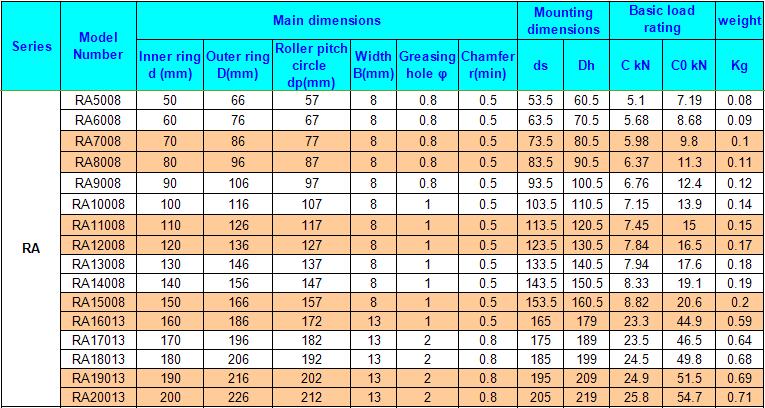

| Series Model No. | (Click the link below to view detailed parameters of the model) RA5008, RA6008, RA7008, RA8008, RA9008, RA10008, RA11008, RA12008, RA13008, RA14008, RA15008, RA16013, RA17013, RA18013, RA19013, RA20013 | ||||||||||
| Application | •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,The link is:
http://yun.baidu.com/share/home?uk=35432805&view=album
