Model RU (Integrated Outer/Innner Ring,with Mounting Holes)
Starting quantity：1件
Product Feature …
ONLINEProduct Feature | BYC- Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||

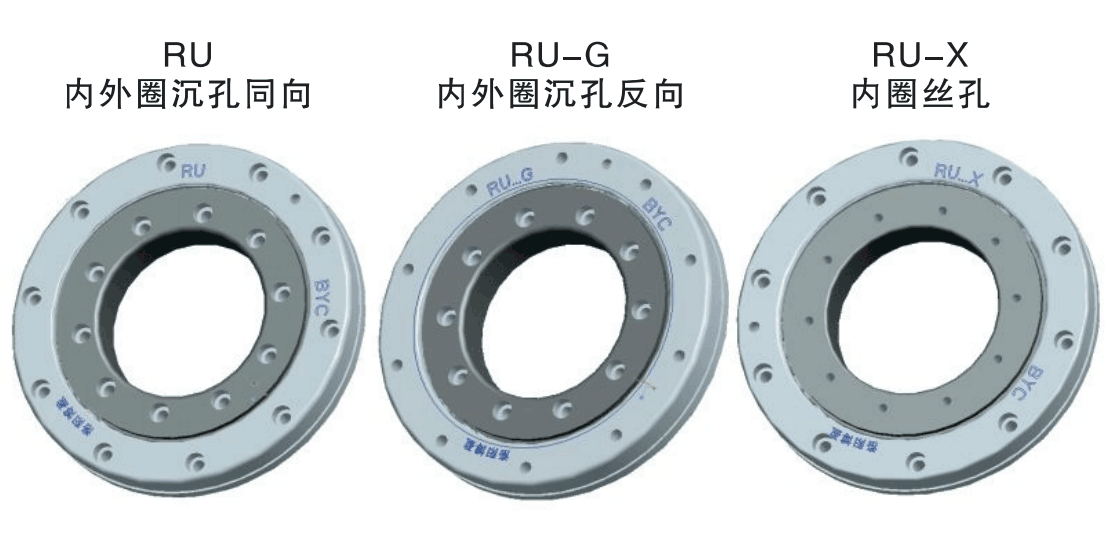

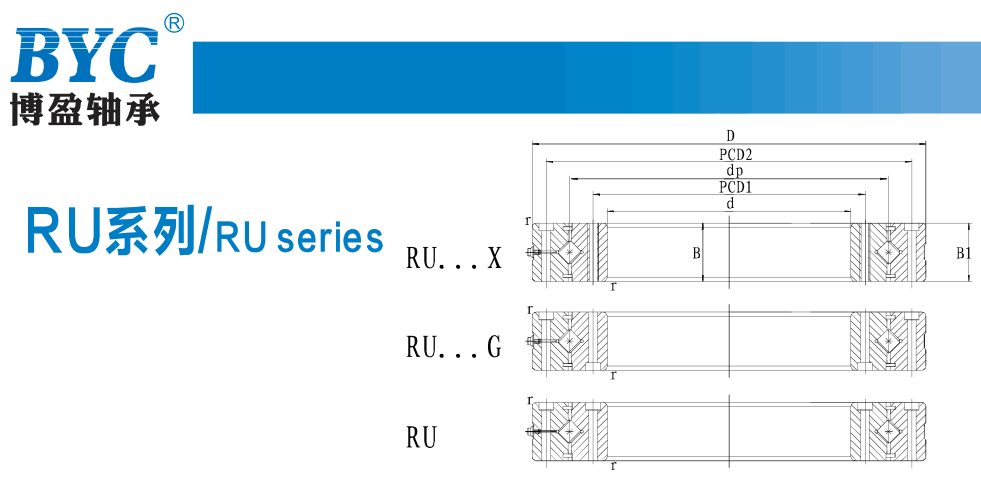

Series Introduction | Model RU (Integrated Outer/Innner Ring,with Mounting Holes) RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. | ||||||||||

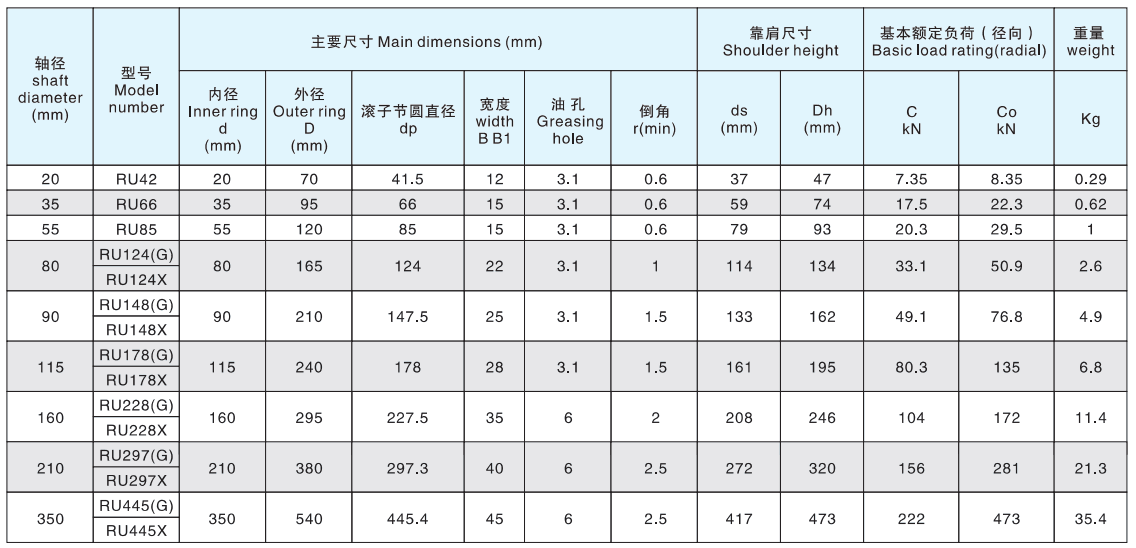

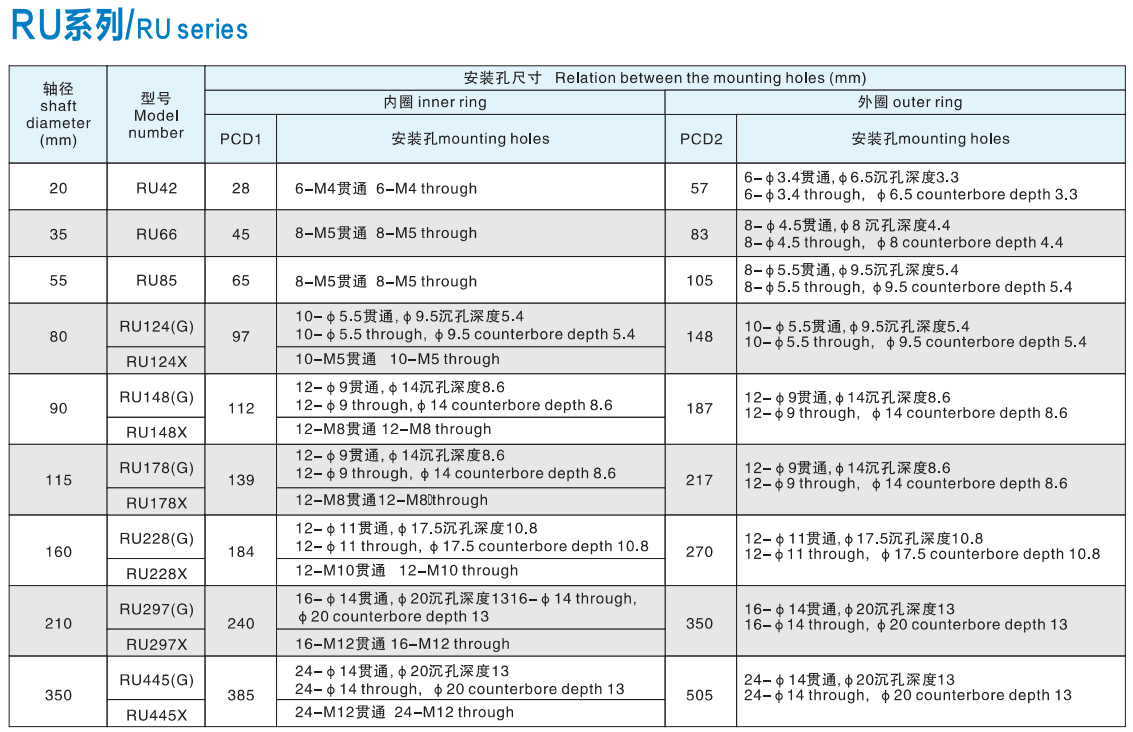

| Series Model No. | (Click the link below to view detailed parameters of the model) RU42(CRBF2012), RU66(CRBF3515), RU85(CRBF5515), | ||||||||||
| Application | •Industrial Robotic arm,Reducer drive •precision Turntable,NC rotary table •Rotation part of Machine tools •Inspection instrument,Medical equipment • Aviation equipment,Military radar etc | ||||||||||
3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,The link is:
http://yun.baidu.com/share/home?uk=35432805&view=album
